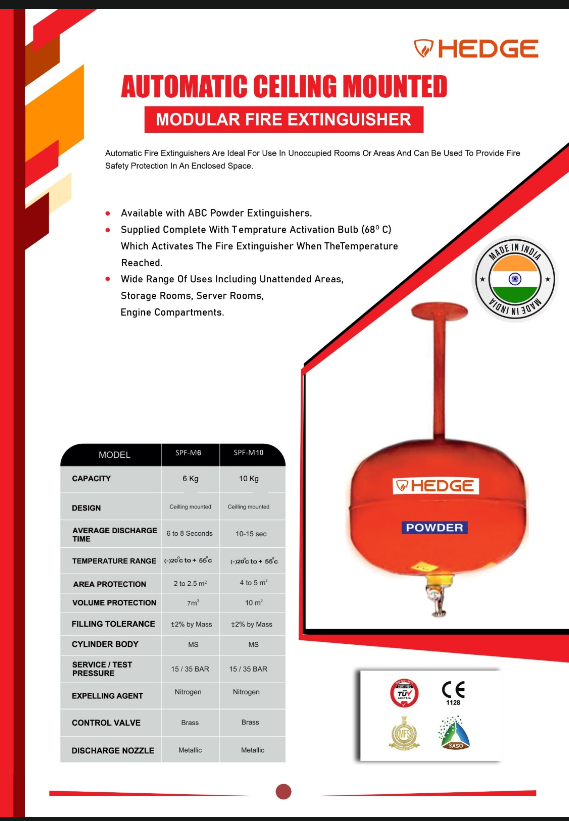

HEDGE FIRE EXTINGUISHER AUTOMATIC DCP 6 & 10KG

Technical Specifications

HEDGE Automatic Ceiling Mounted Modular Fire Extinguisher. Designed for automated fire protection in enclosed, often unoccupied spaces, it activates independently based on ambient temperature.

Key Features & Design

  • Activation Mechanism: It uses a temperature activation bulb calibrated to 68°C that bursts and triggers the extinguisher when that temperature threshold is reached.
  • Extinguishing Agent: Utilizes ABC Dry Powder pressurized with Nitrogen gas.
  • Common Applications: Ideal for areas left unattended, including storage rooms, server rooms, and engine compartments.
  • Origin & Certification: Prominently marked as "Made in India" and displays compliance/certification markings including CE, TÜV, BIS, and SASO.

Technical Specifications Comparison

The product is available in two distinct models based on capacity:

Technical Metric Model: SPF-M6 Model: SPF-M10
Capacity 6 Kg 10 Kg
Average Discharge Time 6 to 8 seconds 10 to 15 seconds
Area Protection 2 to 2.5 m² 4 to 5 m²
Volume Protection 7 m³ 10 m³
Temperature Range -20°C to +55°C -20°C to +55°C
Service / Test Pressure 15 / 35 BAR 15 / 35 BAR
Cylinder Body Material MS (Mild Steel) MS (Mild Steel)
Control Valve / Nozzle Brass / Metallic Brass / Metallic
HEDGE FIRE EXTINGUISHER AUTOMATIC DCP 6 & 10KG
